Vehicle Details

1-10

CHANGAN

Hunter Edition

BASIC INFORMATION

CategoryDetails
Basic Information
LevelMidsize pickup truck
Energy TypeExtended Range
Availability2024.03
Performance
Electric MotorExtended range 177 hp
Pure Electric Range (Ministry of Industry and Information Technology)133 km
Pure Electric Range (NEDC)131 km
Charging Time (Fast Charge)0.5 hours
Fast Charging Capacity (%)30-80
Maximum Power130 kW (177 Ps)
Maximum Torque320 N·m
GearboxElectric vehicle single-speed gearbox
Maximum Speed160 km/h
Official 0-100 km/h Acceleration TimeNot specified
Dimensions & Structure
Length x Width x Height (mm)5630 x 1930 x 1885
Body Structure4 doors, 5 seats, 2 rows
Efficiency
NEDC Comprehensive Fuel Consumption1.3 L/100 km
Power Consumption per 100 km22 kWh/100 km
Electric Energy Equivalent Fuel Consumption2.5 L/100 km
Minimum State-of-Charge Fuel Consumption (Ministry of Industry and Information Technology)7.9 L/100 km
Minimum State-of-Charge Fuel Consumption (NEDC)7.9 L/100 km



BODY

Here is the body information presented in a structured table:

CategoryDetails
Body
Length (mm)5630
Width (mm)1930
Height (mm)1885
Wheelbase (mm)3430
Front Wheel Track (mm)1610
Rear Wheel Track (mm)1630
Minimum Ground Clearance (mm)Not specified
Body Structure
ConfigurationTwo rows
Number of Doors4
Door Opening MethodSwing door
Number of Seats5
Weights and Capacities
Curb Weight (kg)2160
Maximum Load Mass (kg)495
Full Load Mass (kg)2980
Traction Weight (kg)Not specified
Fuel Tank Capacity (L)70.0
Minimum Turning RadiusNot specified
Cargo Box
Dimensions (L × W × H, mm)1850 x 1595 x 500
Departure Angle (°)Not specified


ENGINE

CategoryDetails
Engine
ModelJL486ZQ6
Displacement (mL)1998
Displacement (L)2.0
Air Intake FormTurbocharger
Engine LayoutVertical
Cylinder ArrangementL
Number of Cylinders4
Number of Valves per Cylinder4
Compression RatioNot specified
Valve MechanismDOHC
Maximum Horsepower (Ps)190
Maximum Power (kW)140
Maximum Power Speed (rpm)4500
Maximum Torque (N·m)340
Maximum Torque Speed (rpm)2000-3000
Engine-Specific TechnologiesNot specified
Fuel FormExtended Range
Fuel Grade92#
Oil Supply MethodDirect injection
Cylinder Head MaterialAluminum Alloy
Cylinder MaterialCast iron
Environmental StandardsNational VI
Electric Motor
Motor DescriptionExtended range 177 hp
Motor TypePermanent magnet/synchronous
Total Motor Power (kW)130
Total Motor Horsepower (Ps)177
Total Torque of the Motor (N·m)320
Maximum Power of Rear Motor (kW)130
Maximum Torque of Rear Motor (N·m)320
Number of Drive MotorsSingle motor
Motor LayoutPost


BATTERY

CategoryDetails
Battery
Battery TypeLithium iron phosphate battery
Battery BrandGuoxuan High-tech
Battery Pack WarrantyNo age or mileage limit for the first owner (subject to official regulations)
Battery Capacity (kWh)31.18
Battery Energy Density (Wh/kg)123.2
Battery Charging RateNot specified
Battery Charging
Fast Charge0.5 hours
Fast Charging PortYes
Fast Charging Port LocationRight fender
Slow Charging Port LocationRight fender
Battery Temperature ManagementYes
Low Temperature HeatingYes
Liquid CoolingYes
Single Pedal ModeNot specified
VTOL
Mobile Power Station FunctionYes
VTOL Maximum External Discharge PowerNot specified
Gearbox
Gearbox DescriptionElectric vehicle single speed gearbox
Number of Gears1
Gearbox TypeFixed gear ratio gearbox
Chassis/Steering
Drive ModeRear-engine, rear-wheel drive
Front Suspension TypeDouble wishbone independent suspension
Rear Suspension TypeIntegral bridge type non-independent suspension
Steering TypeElectric power assist
Vehicle StructureNon-load bearing
Wheels/Brakes
Front Brake TypeVentilated disc
Rear Brake TypeSolid disc
Parking Brake TypeElectronic parking brake
Front Tire Size245/70 R17
Rear Tire Size245/70 R17
Spare Tire SpecificationsNot specified



INTERNAL CONFIGURATION

CategoryDetails

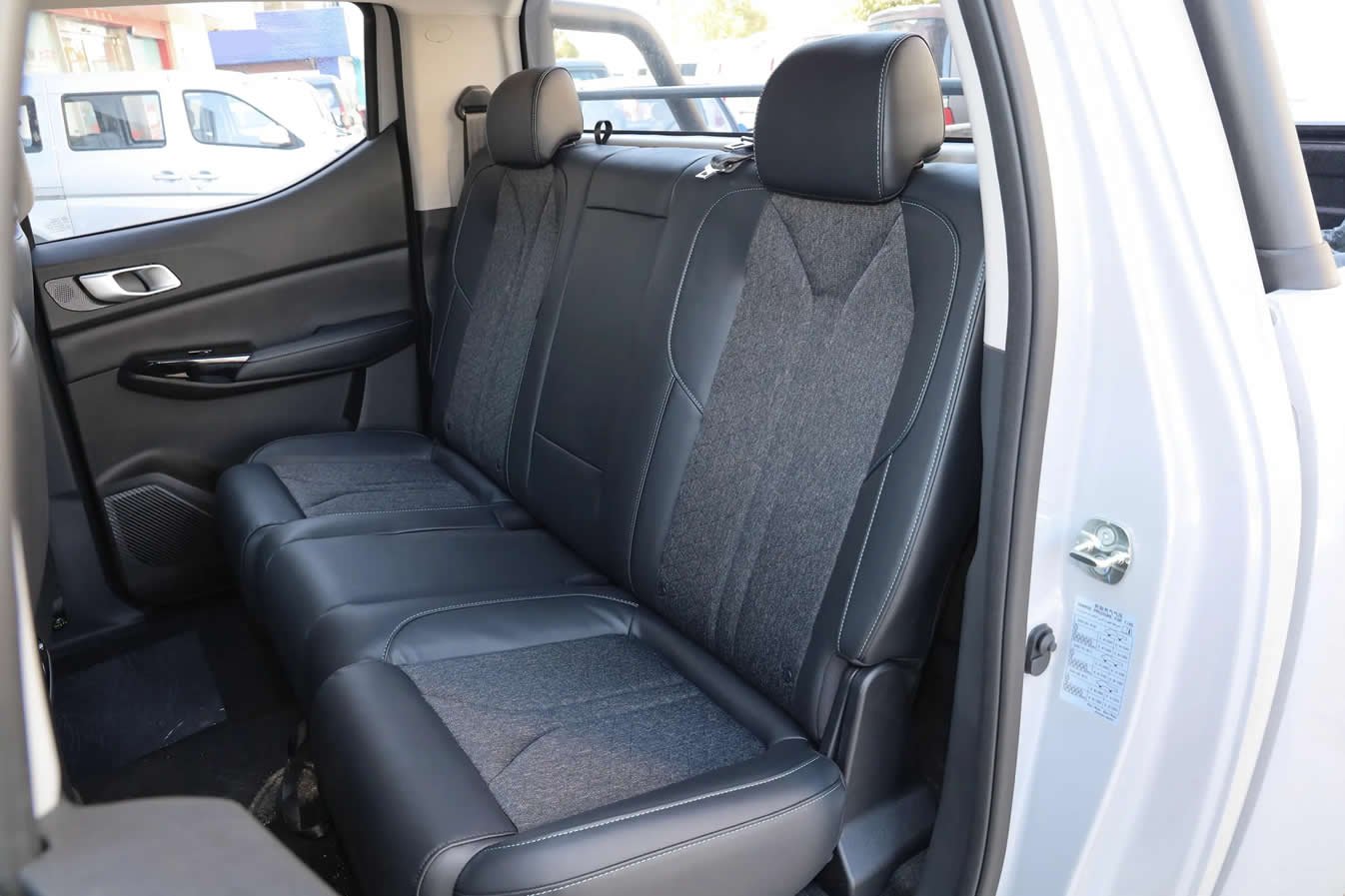

Seats
Seat MaterialLeather and fabric mix
Sports Style SeatsNo
Electric Seat AdjustmentNot specified
Driver's Seat AdjustmentMove forward and backward, backrest angle, height adjustment
Passenger Seat AdjustmentMove forward and backward, backrest angle
Second Row Seat FunctionsFoldable
Smart Connectivity
Central Control Screen Size12.3 inches
Bluetooth/Car PhoneYes
Mobile Internet MappingOriginal machine
Number of USB/Type-C Ports2 (front row)
AudioStandard, 4 speakers
Lighting
Low Beam, High BeamLED
Daytime Running LightsYes
Automatic HeadlightsYes
Headlight Delay OffYes
Glass/Rearview Mirror
Power WindowsYes (front and back rows)
One-Touch Window LiftingFull Vehicle
Window Anti-Pinch FunctionYes
Exterior Mirror FunctionElectric adjustment
Air Conditioning
Air Conditioning ControlManual
In-car PM2.5 FilterYes


Example of the distance this truck will cover is from Abuja to Kano:


Specific Detailing
  • Doors: 4
  • Passengers: 5
  • Luggage: 10+
  • Range: Manual
  • Air conditioning: Dual Zone
  • Charging time: 0.5Hrs
